Description





BC1 - B1 / B2 / B3
Battery Camera Kit with 1 / 2 / 3 cameras + base station

Specifications
Model : CS-BC1- B1 / B2 / B3 / A0-2C2WPBL

System Parameters
Processor : High-Performance Embedded SOC Processor
Operating System : Linux

Camera Parameters
Image sensor : 1/2.8” 2-Megapixel Progressive Scan CMOS Sensor
Lens : 2.8 mm @ F1.6; 128° (Diagonal), 108° (Horizontal)
Lens Mount : M12
Night Vision : IR Distance:10m, IR-cut filter with auto-switching

Video Parameters
Video Compression : H.265
Max. Resolution : FHD 1920 x 1080
Frame Rate : 15fps. Self-Adaptive during network transmission
DNR : 3D DNR
WDR : DWDR

Audio Parameters
Audio Input : Built-in Omni-direction microphone
Audio Output : Built-in loudspeaker
Audio Quality : Noise suppression

Camera Event
Sensor : PIR Motion Detection Sensor
Alarm : Customized Alert Area
Siren : 105 dB built-in siren

Camera Network Parameters and Storage
Wireless : Built-in 2.4G Wi-Fi
Network Configuration : AP Pairing
Minimum Network Requirement : 1Mbp
Local Storage : Support MicroSD card up to 256 GB in Base Station
Cloud Storage : EZVIZ Cloud Storage

Base Station Parameters
Camera pairing : Support up to 4 BC1 cameras
Buttons : 1 SYNC button; 1 POWER button; 1 RESET button (hold 5 seconds to RESET)
Siren : 125 dB built-in siren
Local Storage : MicroSD card slot on the base station (up to 256 GB)
Antenna : 2.4G: 2 internal @ 3dB
Indicator : RGB 3 LED Indicator; 1 network Indicator
USB : Do not support
Network Interface : 1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface.
Wireless Interface : Support 2.4G connection. The actual available channels vary according to the sales area regulations. Theoretical maximum rate is 144M at 802.11b/g/n.
Power : 12V/1A typical power consumption < 12watts; The adapter supports a wide voltage range from 100V~240V

General
Operating Conditions : -20°C to 45°C (-4°F to 113 °F), Humidity 95% or less (non-condensing)
Power Supply : 12900mAh Rechargeable Lithium Battery or 5V DC
Power Consumption : Max. 5W
IP Grade : IP 66

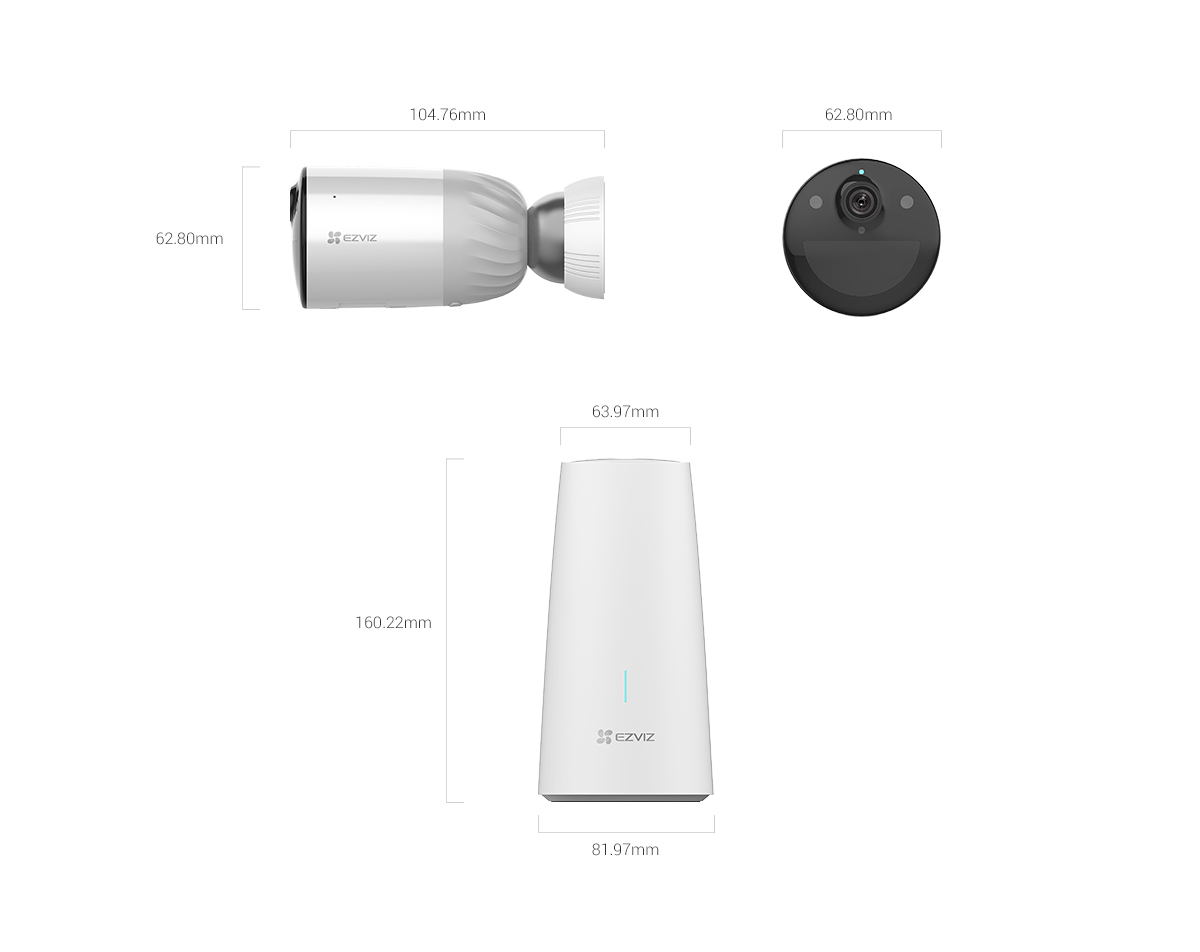

Dimensions : Camera : 104.76 x 62.80 x 62.80 mm (4.12 x 2.47 x 2.47 inch) / Base : 81.97 x 63.97 x 160.22 mm (3.23 x 2.52 x 6.31 inch)
Packaging Dimensions : B1,B2 : 260 x 217 x 180 mm / B3 : 293 x 288 x 180 mm / A0 : 186 x 103 x 103 mm
Weight : B1 : 1304 g (46 oz) / B2 : 1684 g (59 oz) / B3 : 2441 g (86 oz) / A0 : 851 g (30oz)

In the box
  • BC1 Cameras
  • Base Station
  • Magnetic Bases
  • Screw Bases
  • Power Adapter (For Base Station)
  • Power Adapter (For Camera)
  • USB Cable
  • Mounting Plates
  • Drill Templates
  • Screw Kits
  • Regulatory Information
  • Quick Start Guide

Certifications
Certifications : CE / FCC / ROHS / REACH / WEEE / UL
