EP4
See who’s coming, know who’s home
Specifications
Specifications
Model : CS-EP4
Installation Parameters
Supportive Hole Diameter : 14 to 50 mm (0.55 to 1.97 inch)
Supportive Door Diameter : 35 to 105 mm (1.38 to 4.13 inch)
Camera Parameters
Sensor : 1/2.8" Progressive Scan CMOS
Lens : 2.0 mm @ F1.6, visual angle (diagonal):160°
Day / Night Switch : ICR Infrared Filter
IR Distance : Max. 5 m
Max. Resolution : 4K (3840 × 2160)
Video Frame Rate : 15 fps
PIR Detection
Angle : 110°
Distance : Max. 6 m (20 ft)
Sensitivity : Adjustable
Interface
Storage Interface : Supports local storage (max. 512 GB)
Audio Input : Built-in high sensitivity microphone
Audio Output : Built-in high-power speaker
Buttons : Doorbell button, power button, screen wake up button
Network
Intelligence Alarm : AI-powered human motion detection & PIR motion
Protocol : EZVIZ Cloud Proprietary Protocol
Video Intercom : Local and remote video intercom
General Function : Cloud video encryption and image encryption
Wireless
Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n
Frequency Range : 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth : Supports 20 MHz
Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate : 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
General
Screen : 5.5-inch color touch screen
Color : Golden / sliver
Operating Conditions : -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply : DC5V±10%
Power Consumption : Max. 5 W

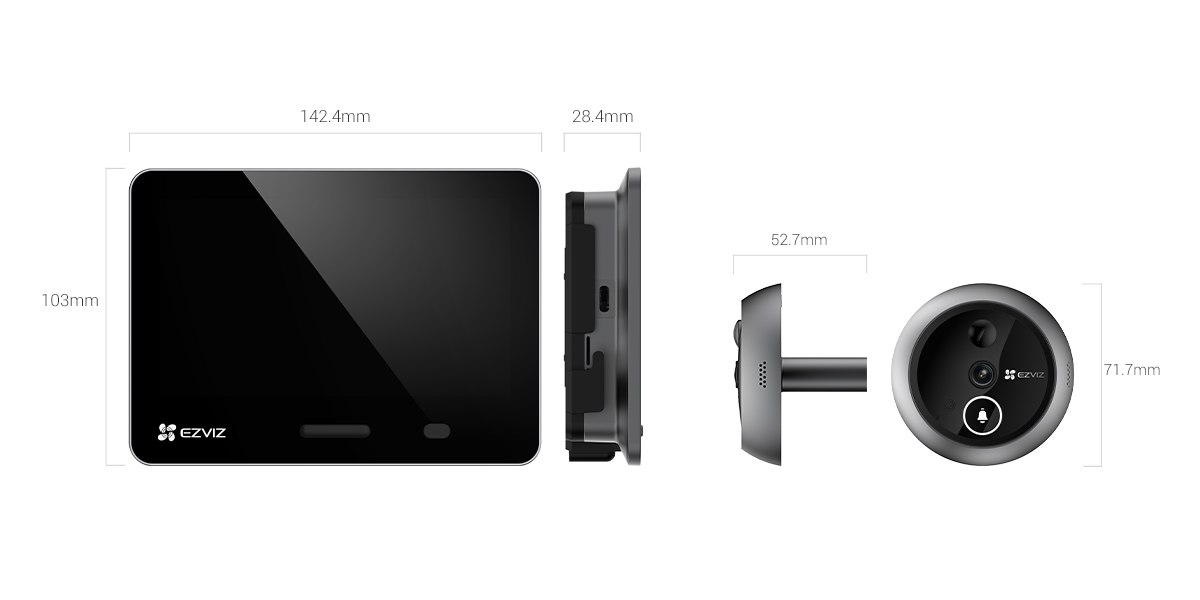

Dimension : Screen and base: 103 × 142.4 × 28.4 mm (4.06 × 5.61 × 1.12 inch); Peephole doorbell: 71.7 × 71.7 × 52.7 mm (2.82 × 2.82 × 2.07 inch)
Weight : 775.5 g (with package)
In the box
- Panel
- Mounting Base
- Camera
- Buckle
- Screws × 6
- Base Cover
- Power Cable
- Regulatory Information
- Quick Start Guide
Certifications
Certifications : CE / REACH / WEEE / RoHS
