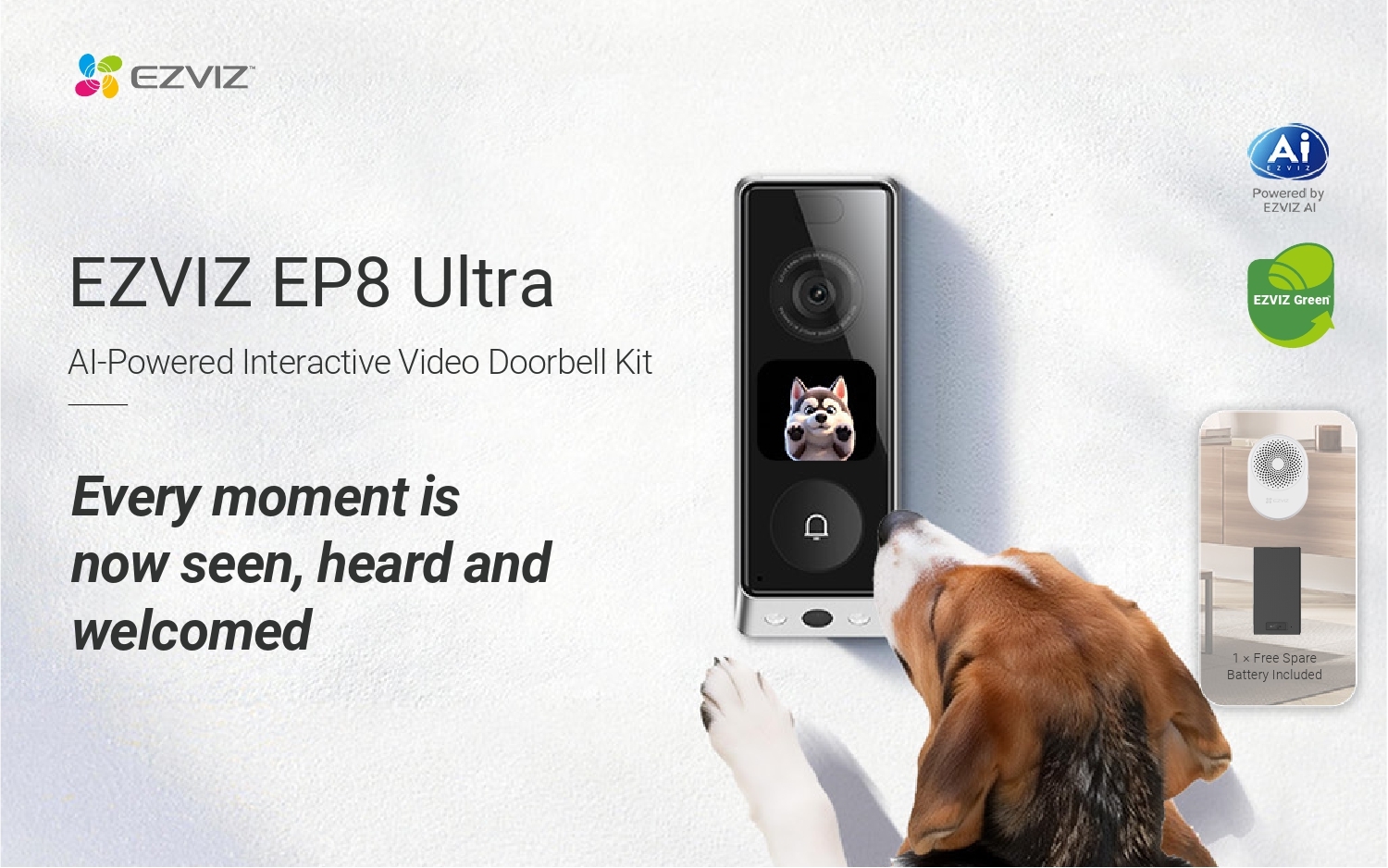

EP8 Ultra
AI-Powered Interactive Video Doorbell Kit
Specifications
Model : CS-EP8 Ultra
Camera Parameters
Image Sensor : 1/2.8" Progressive Scan CMOS (Supports low light sensitivity)
Lens : Upper camera: 2.0mm@F 1.6 ,diagonal field of view 162 ° Bottom camera: 1.8 mm @ F2.4 ,diagonal field of view 88 °
Day & Night : ICR infrared filter type ( Max: 6 meters)
Video Parameters

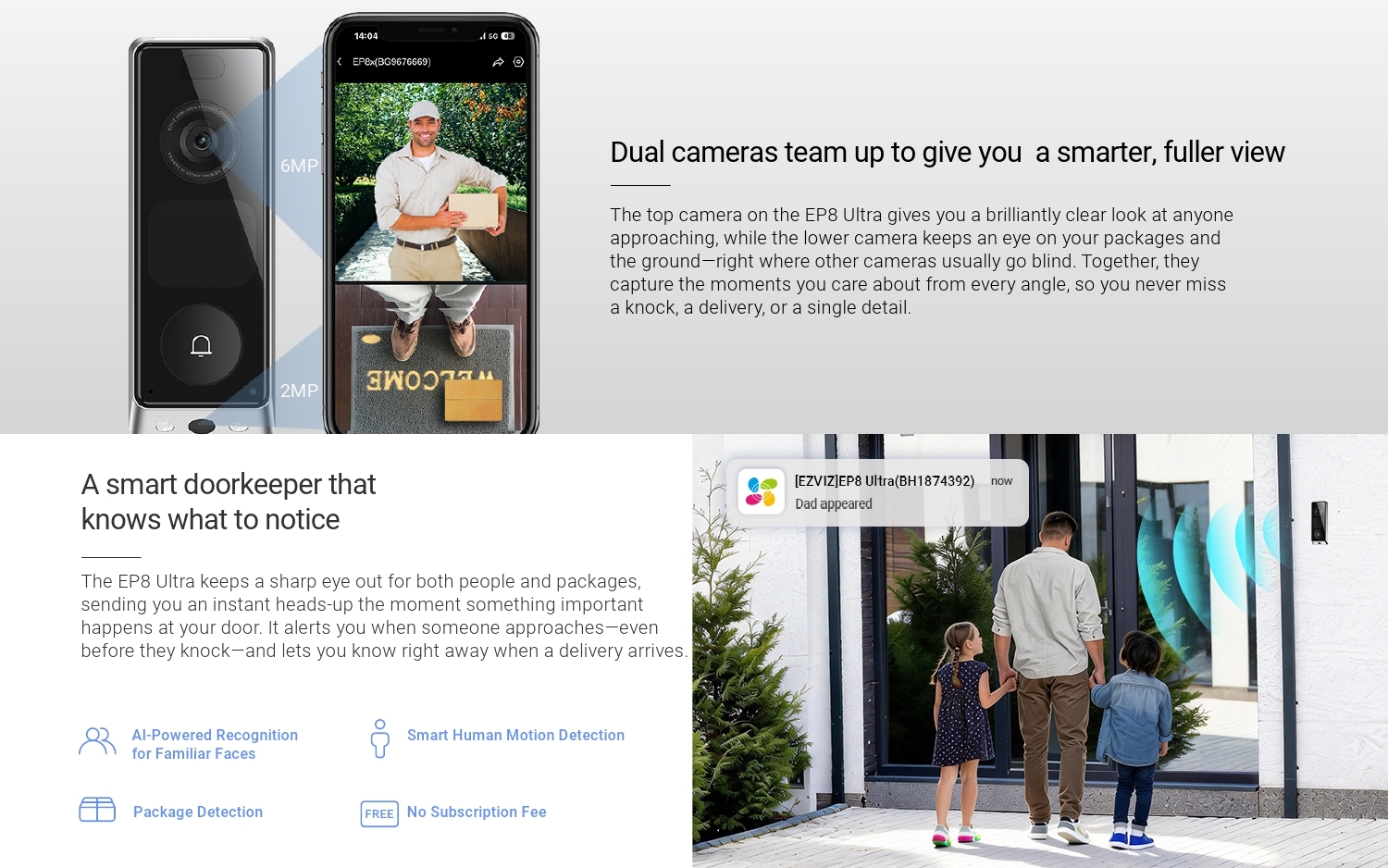

Max. Resolution : Main camera: 6MP (2464 × 2464) Bottom camera: 2MP (1920 × 1080)
DNR : 2D / 3D DNR
Video Compression : H.265 / H.264
Frame Rate : 15fps. Fixed frame rate
PIR Sensor
Sensing Angle : 100°
Sensing Distance : Max. 6 m (19.7 ft)
Sensitivity : User adjustable (High: 6 meters, Mid-high: 5 meters, Medium: 4 meters, Mid-low: 3 meters and Low: up to 2 meters)
Storage
Local Storage : Built-in 32GB eMMC
Cloud Storage : Supports EZVIZ CloudPlay storage (subscription required)
Interface
Audio Input : Built-in high-sensitivity microphone
Audio Output : Built-in high-power speaker
Button : Doorbell button with electronic doorbell
Reset button : Yes
Network Parameters
Protocol : EZVIZ Cloud Proprietary Protocol
Interface Protocol : EZVIZ Cloud Proprietary Protocol
Functions
Intelligent Alarm : AI-powered human shape detection; Package detection
Video Intercom : Two-way talk
Wi-Fi Parameters
Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n
Frequency Range : 2.4GHz ~ 2.4835GHz
Channel Bandwidth : Supports 20MHz
Security : 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK
Transmission Rate : 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
General
Operating Conditions : -20°C to 50°C Humidity 95% or less (non-condensing)
Ingress Protection Grade : IP65
Size : 120mm*103mm*190mm

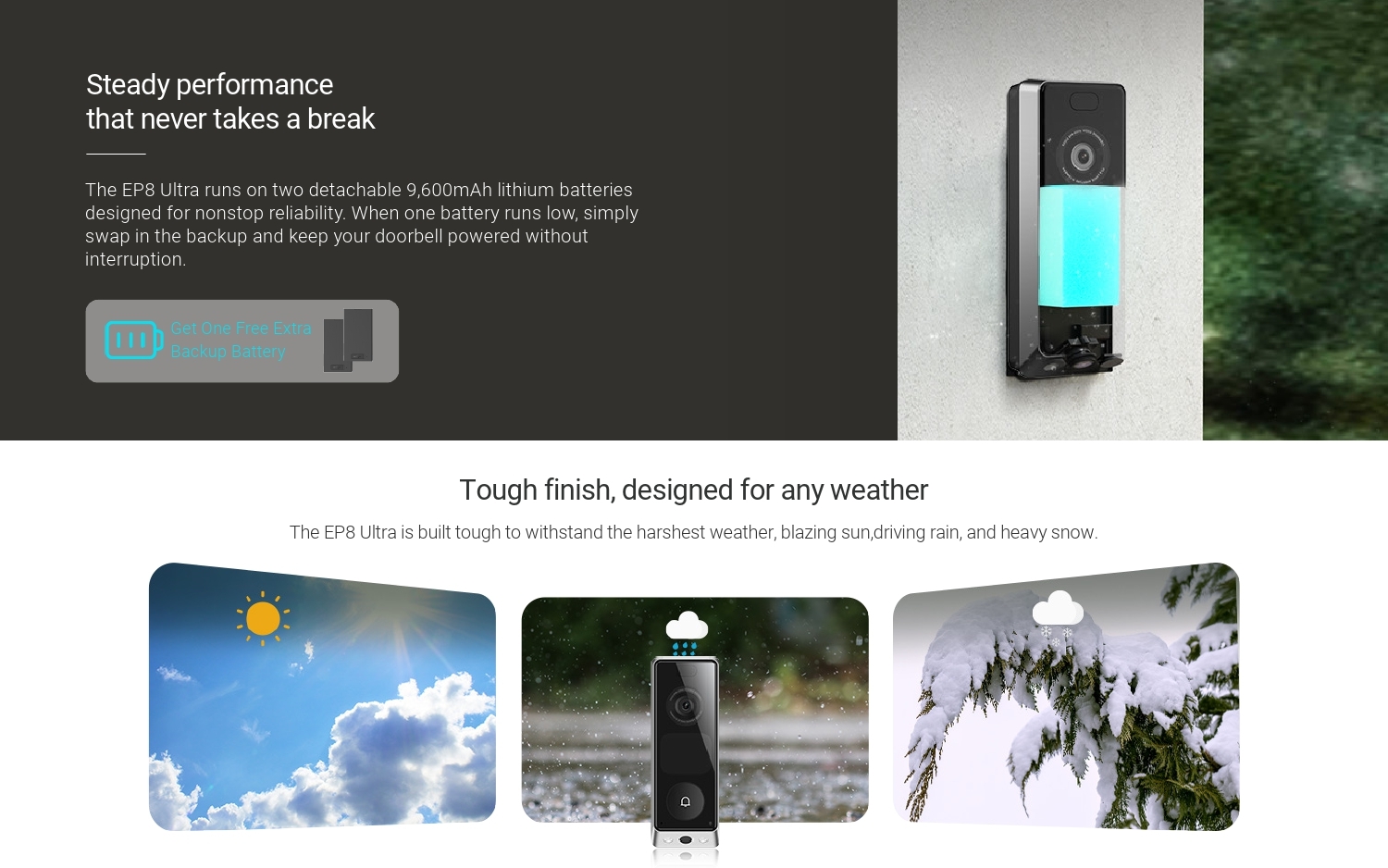

Battery Capacity : 9,600mAh rechargeable lithium battery (one more back-up battery for free)
Power Supply : 8-24VAC, type-C:5V(+-10%)
Power Consumption : 3W Max
Weight with Package : 890g
In the box
- Doorbell
- Mounting Bracket
- Inclined Mounting Bracke
- Drill Template
- Chime
- Battery × 2
- Type-C Cable
- Pin
- Screw Kit
- U-Shaped Wire × 2
- Wire Connector × 2
- Regulatory Information × 4
- Quick Start Guide
- Video / Audio Monitoring Sticker
Certifications
Certifications CE / REACH / WEEE / RoHS
