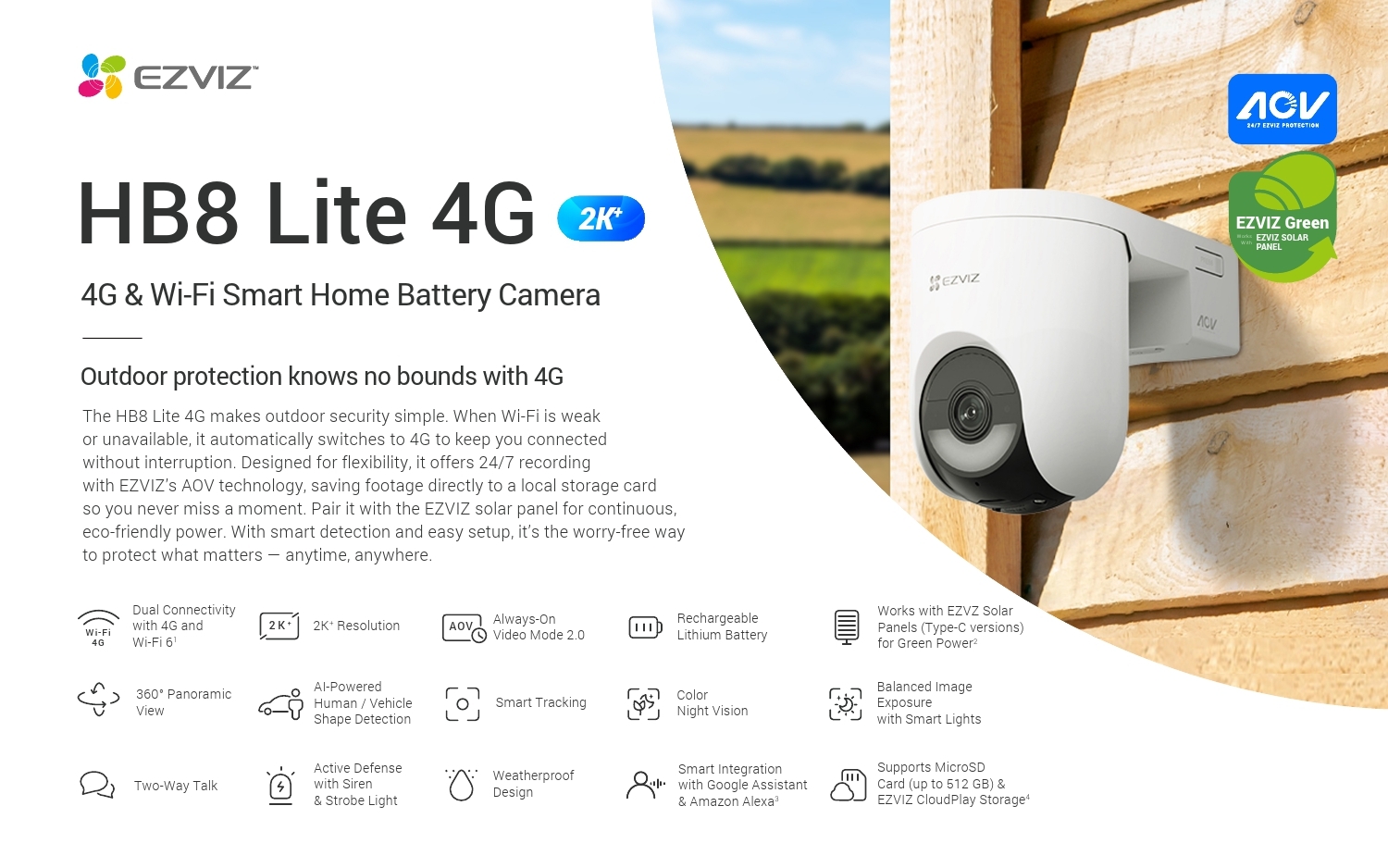

HB8 Lite 4G
4G & Wi-Fi Smart Home Battery Camera
Specifications
Model : CS-HB8c-R100-1N4WL4GA, CS-HB8c (4MP,W4GA)
Camera
Image Sensor : 1/3" 4-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination : 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed : Self-adaptive shutter
Lens : 4mm@ F1.6 Diagonal angle: 90° Horizontal angle: 75° Vertical angle:40°

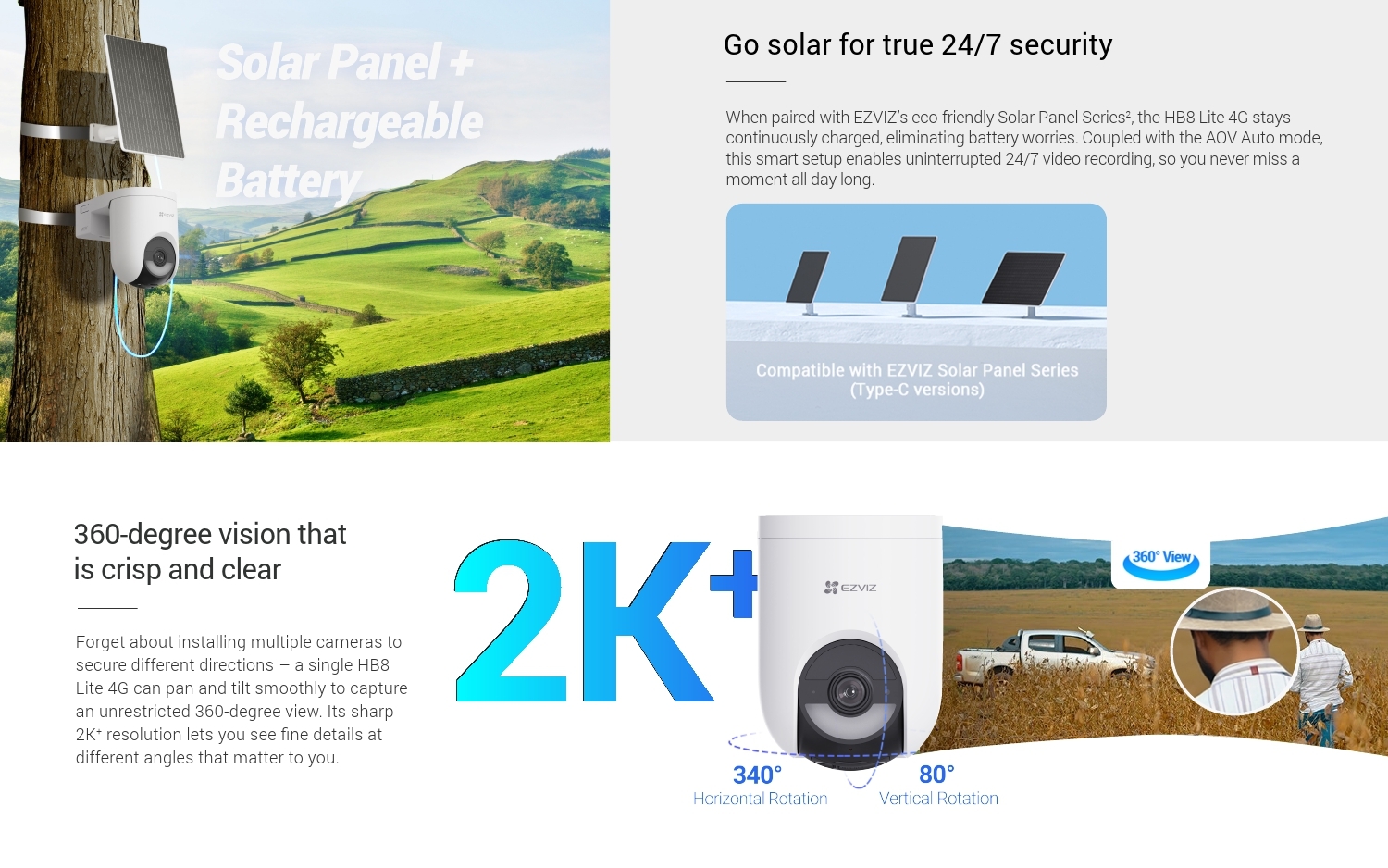

PT Angle : Pan: 340°, Tilt: 80°
Day & Night : IR-cut filter with auto switch
DNR : 3D DNR
Night Vision : 15 m
Video & Audio
Max Resolution : 2K+ (2560 × 1440)
Frame Rate : 15fps; Self-adaptive during network transmission
Video Compression : H.265 / H.264
Video Bit Rate Ultra-HD; Full HD; Hi-Def; Adaptive bit rate
Audio Bit Rate : Self-adaptive
Max. Bitrate : 4 Mbps
Network
Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n, 802.11 ax
Frequency Range : 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth : Supports 20 MHz
Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate : 11b: 11Mbps,11g :54Mbps,11n :72Mbps, 11ax:114Mbps
Wi-Fi Pairing : AP pairing
Protocol : EZVIZ Cloud Proprietary Protocol
Interface Protocol : EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement : 4 Mbps
Frequency Bands : IN LTE-FDD: B1/B3/B5/B8 IN LTE-TDD: B34/B38/B39/B40/B41 EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28 EU LTE-TDD: B38/B40/B41 LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 LA LTE-TDD: B38/B40/B41
Function

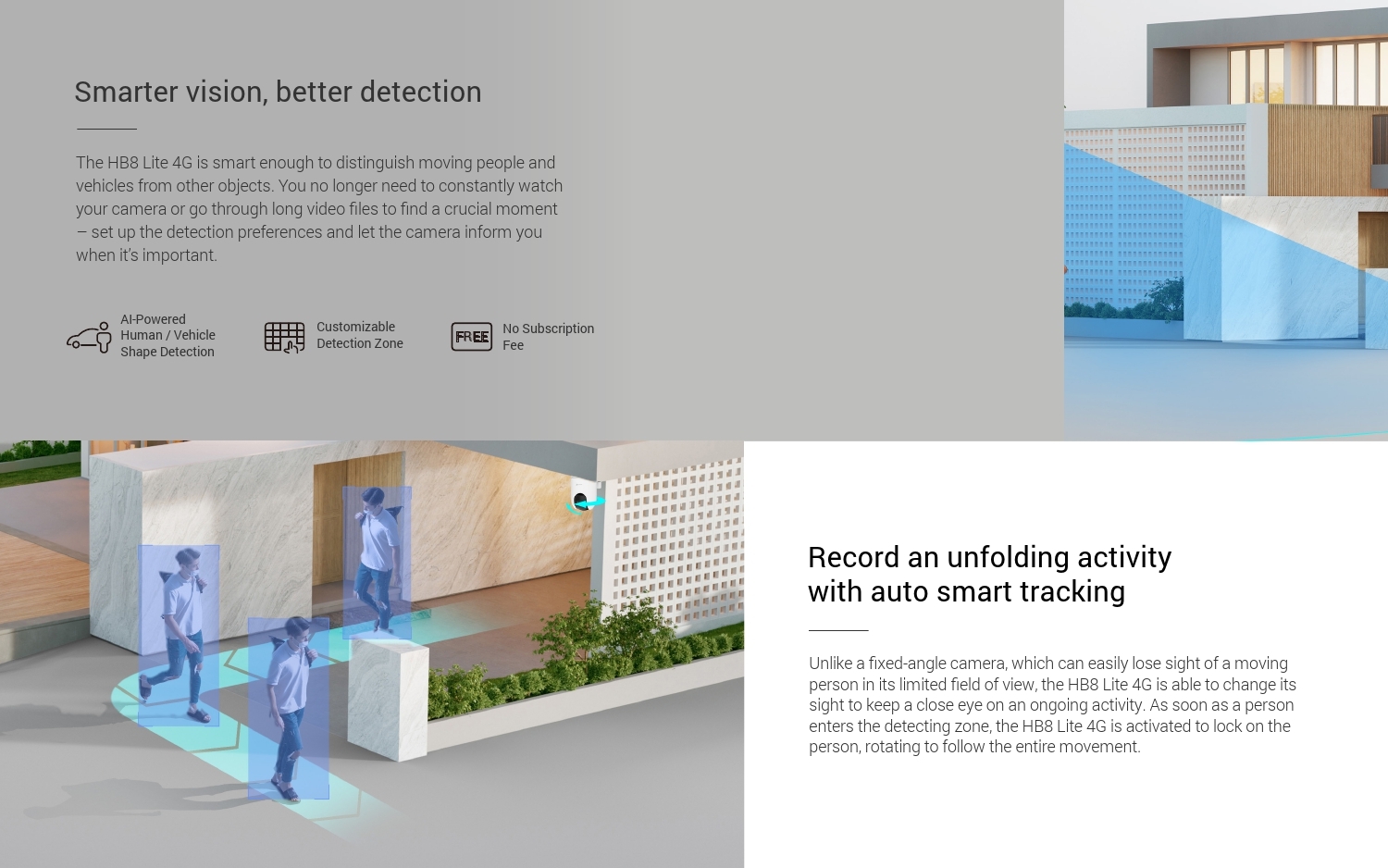

Smart Alarm : AI-powered human shape detection AI-powered vehicle shape detection
Two-Way Talk : Supports
General Function : Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage : Supports microSD card (max. 512 GB)
Cloud Storage : Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions : -20 °C to 50 °C (-4 °F to 122 °F), Humidity 95% or less (non-condensing)
IP Grade : IP65
Power Supply : DC 5 V / 2 A (Adapter needs to be purchased separately)
Battery Capacity : 5,200 mAh
Power Consumption : Max.10 W

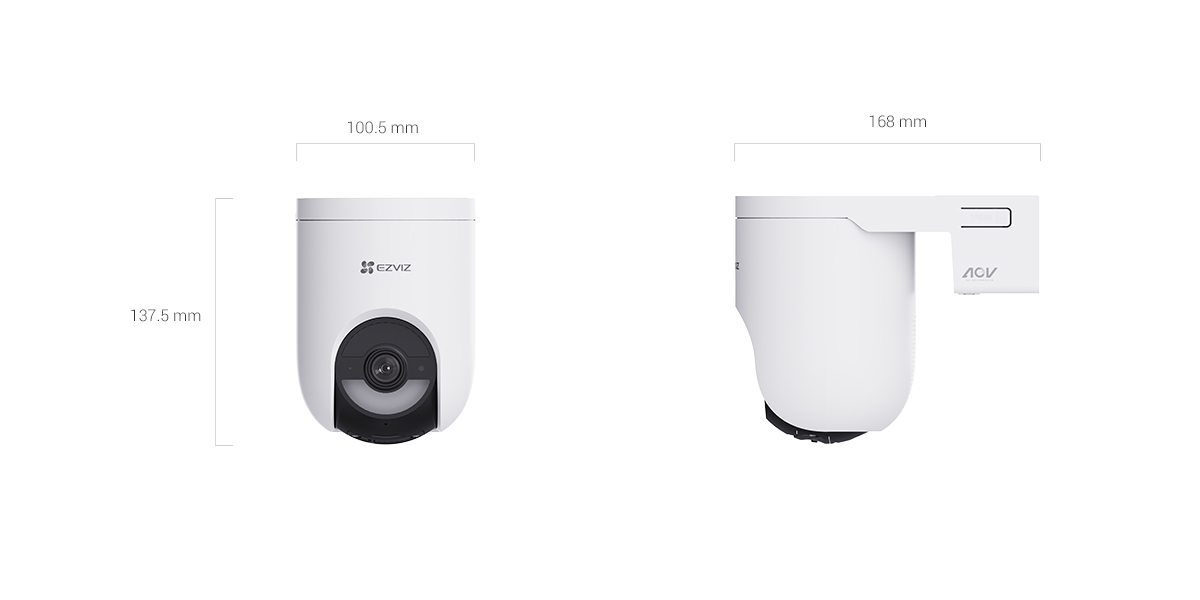

Product Dimensions : 168 × 100 × 137.2 mm (6.61 × 3.94 × 5.40 inch)
Packaging Dimensions : 205 × 145 × 194 mm (8.07 × 5.70 × 7.64 inch)
Product Weight : 660 g (23.28 oz)
Weight with Package : 1120 g (39.50 oz)
In the box
- HB8 Lite 4G Camera
- Drill Template
- Screw Kit
- Power Cable
- Regulatory Information × 2
- Quick Start Guide × 2
Certifications
Certifications CE / REACH / WEEE / RoHS
